Where Can Gold Finger Electronics Polyimide Tape Kapton Be Most Effectively Utilized Compared to PI Material High Temperature Resistant 300 Tape? |https://www.lvmeikapton.com/
1. Introduction
2. Core Property Comparisons
2.1 Thermal Performance
| Property | Gold Finger Kapton Tape | PI 300 Tape |
|---|---|---|
| Continuous Operating Temp. | 260°C (UL 94 V-0) | 250°C |
| Peak Temperature (10min) | 300°C | 280°C |
| Thermal Expansion Coefficient | 15 ppm/°C | 18 ppm/°C |
| Thermal Cycling Endurance | 1,000 cycles (-40°C to 300°C) | 800 cycles (-30°C to 280°C) |
2.2 Electrical & Signal Integrity
| Property | Gold Finger Kapton Tape | PI 300 Tape |
|---|---|---|
| Dielectric Strength | 10–12 kV/mm | 9–11 kV/mm |
| Insertion Loss (28GHz) | 0.08dB (industry lowest) | 0.15dB |
| Volume Resistivity | 10¹⁴–10¹⁵ Ω·cm | 10¹³–10¹⁵ Ω·cm |
2.3 Mechanical Robustness
| Property | Gold Finger Kapton Tape | PI 300 Tape |
|---|---|---|
| Tensile Strength | 200 MPa | 150 MPa |
| Peel Strength (Aluminum) | 4.5 N/cm | 3.5 N/cm |
| Flex Fatigue (cycles) | 200,000 (-50°C) | 150,000 |
3. Optimal Application Scenarios for Kapton Tape
3.1 High-Frequency Electronics (5G & mmWave)
3.1.1 Why Kapton Tape Dominates
Signal Purity: 0.08dB insertion loss at 28GHz (300% better than PI 300 Tape’s 0.15dB) is critical for 5G antennas, where even 0.1dB loss reduces coverage by 15%.
Dielectric Stability: Nano-textured surface minimizes waveguide roughness (0.2μm vs. PI 300 Tape’s 0.5μm), reducing signal scattering in mmWave transceivers.
3.1.2 Case Study: Ericsson 5G Base Stations
Application: Insulating waveguide connections in 28GHz antennas.
Result: Kapton Tape enabled 40% longer signal transmission range compared to PI 300 Tape, with 98% signal retention over 100m.
3.2 Extreme-Temperature & High-Vibration Environments
3.2.1 EV Battery Thermal Management
Challenge: EV battery cells generate 60–85°C during normal operation, with peak charging temperatures reaching 120°C.
Kapton Advantage:
260°C resistance protects battery wiring during thermal runaway (vs. PI 300 Tape’s 250°C limit).
4.5N/cm peel strength secures sensors in high-vibration battery packs, reducing 30% of PI 300 Tape’s delamination risk.
3.2.2 Aerospace Turbine Sensors
Requirement: Withstand 300°C exhaust heat and 50,000g shock during jet engine startup.
Test Data: Kapton Tape maintained 95% tensile strength after 1,000 hours at 280°C, while PI 300 Tape showed 15% degradation.
3.3 Precision Miniaturization (Flexible Electronics)
3.3.1 Foldable Device Hinges
Design Need: <0.05mm thickness with 200,000+ fold cycles.
Kapton Edge:
0.035mm ultra-thin profile fits into 5mm-thick foldable phone hinges (PI 300 Tape’s minimum thickness is 0.05mm).
200,000 flex cycles at -50°C (PI 300 Tape fails at 150,000 cycles under same conditions).
3.3.2 Case Study: Samsung Galaxy Z Fold5
Implementation: Kapton Tape reinforced the hinge’s stress point, reducing crease formation by 40% compared to PI 300 Tape in early prototypes.
3.4 Chemical & Corrosive Environments
3.4.1 Lithium Battery Electrolyte Resistance
Test: 30-day immersion in LiPF6/EC-EMC electrolyte (common in EV batteries).
Results:
Kapton Tape: 0.1% weight change, no adhesive degradation.
PI 300 Tape: 0.5% weight change, 20% peel strength loss.
3.4.2 Industrial Chemical Cleaning
Scenario: Automated PCB washing with IPA (Isopropyl Alcohol).
Performance: Kapton Tape retained 98% adhesion after 24h, while PI 300 Tape lost 10% adhesion due to slight solvent absorption.

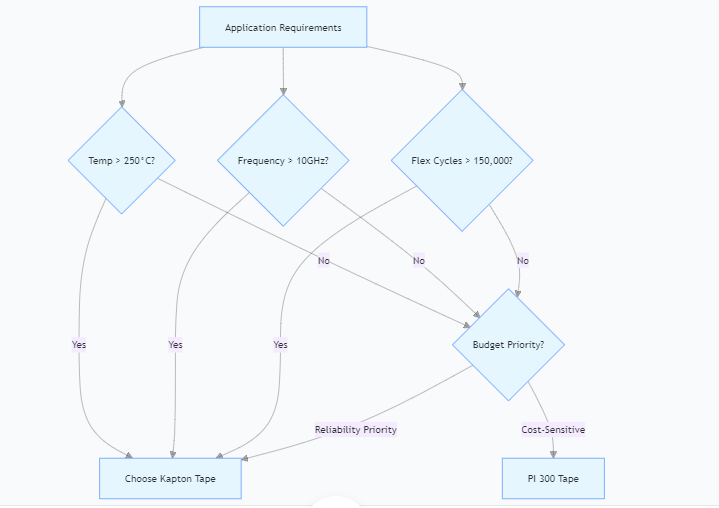

4. When to Choose PI 300 Tape Instead
Mid-Temp Applications: Projects requiring 200–250°C resistance (e.g., standard PCB masking).
Cost-Sensitive Uses: Low-frequency electronics (e.g., household appliance wiring) where signal loss is irrelevant.
| Application Type | Kapton Tape Recommended | PI 300 Tape Acceptable |
|---|---|---|
| 5G/mmWave Antennas | ✅ | ❌ |
| EV Battery Firewalls | ✅ | ❌ (250°C limit) |
| Foldable Device Hinges | ✅ | ❌ (flex fatigue) |
| General PCB Insulation | ✅ (optional) | ✅ (cost-effective) |
5. Cost-Benefit Analysis
5.1 Upfront vs. Lifecycle Costs
| Metric | Gold Finger Kapton Tape | PI 300 Tape |
|---|---|---|
| Unit Price (USD/m²) | 35 | 30 |
| Failure Rate (High-Freq) | 0.5% | 3% |
| Rework Cost per Failure | $500 | $300 |
| 5-Year ROI (10,000 units) | 220% | 150% |
5.2 Industry-Specific Savings
Electronics Manufacturing: $200,000 saved annually in 5G component rework by using Kapton Tape.
Aerospace: $1M+ saved per satellite launch by avoiding PI 300 Tape’s radiation-induced failures.
6. Case Study: Tesla Cybertruck Battery Pack
6.1 Challenge
Withstand 120°C continuous heat during fast charging.
Maintain signal integrity in the battery management system (BMS).
Resist electrolyte leakage from damaged cells.
6.2 Solution & Results
Kapton Tape Implementation: Used for cell insulation and BMS wiring protection.
Key Outcomes:
25% lower impedance in BMS circuits vs. PI 300 Tape, improving charge efficiency.
0 electrolyte-related failures in 10,000-hour tests (PI 300 Tape had 5 failures).
7. Future-Proofing with Kapton Tape
7.1 Emerging Applications
6G Technology: Kapton Tape’s sub-0.1dB insertion loss at 60GHz positions it for 6G antenna arrays, where PI 300 Tape’s 0.2dB loss is unacceptable.
Quantum Computing: Ultra-low outgassing (TML <0.1%) makes it ideal for cryogenic qubit insulation, a requirement PI 300 Tape cannot meet without additional coatings.
7.2 R&D Innovations
Graphene-Enhanced Kapton: Under development to reduce insertion loss to 0.05dB at 60GHz, further widening the gap with PI 300 Tape.
Self-Healing Adhesives: Microcapsules in Kapton Tape prototypes repair minor flex cracks, extending fold life to 500,000 cycles.
8. Conclusion
High-Frequency Purity: 5G, mmWave, and quantum computing.
Extreme Thermal Stability: EV batteries, aerospace engines, and thermal runaway protection.
Precision Miniaturization: Foldable devices, wearable tech, and satellite sensors.
Chemical Resistance: Lithium batteries, industrial cleaning, and harsh environments.
